Analyticon

Article number: A 95 005

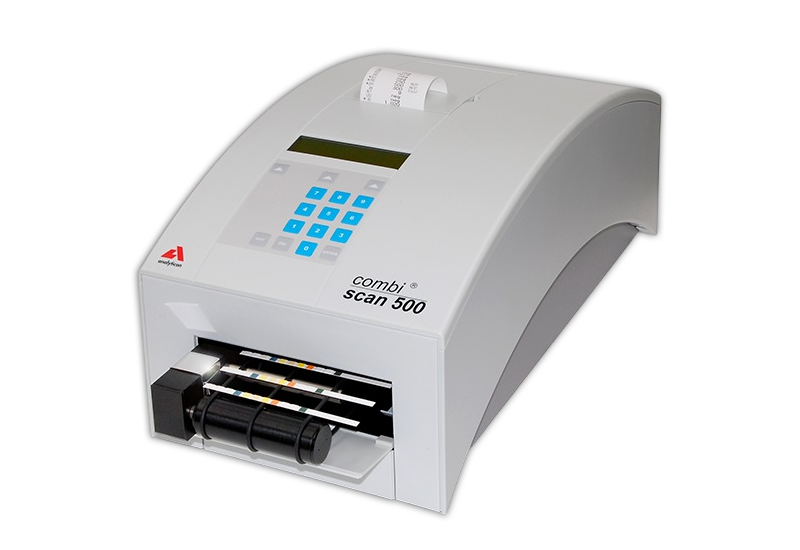

CombiScan® 500 Analyzer

CombiScan® 500 is a semi automated urine test strip analyzer for use with CombiScreen® 11  SYS or 11  SYS PLUS test strips. It is designed for bigger laboratories and for hospitals.

Features & Function
  • Modern CCD technology
  • Interface for barcode reader and keyboard
  • Automatic test strip recognition and standby
  • Variable format selection for printout of test results and time/data
  • Integrated printer
  • Automatic transport, measurement of test strips
  • Bi-directional interface for laboratory and ­hospital EDP
Technical Data
Product Specifications
Image sensor CCD technology
Throughput 500 strips/hour
Display 4 x 24 character LCD
Languages English, German, French, Hungarian, Spanish
Output options Units: SI, Conventional, Arbitrary
Printer Low noise, built-in thermotransfer printer
Paper size 57 mm x ø 50 mm
Memory Last 999 results

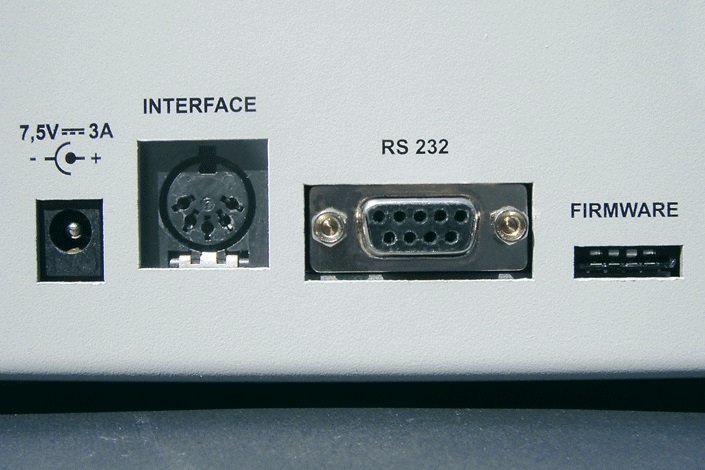

Interfaces RS 232 and DIN 5
Ext. Power Ad. 7,5 V DC/3 A
Accessories
  • Keyboard
  • Barcode reader
  • Urine test strips CombiScreen® Classic
  • Paper roll 57 mm
